50cc to 140cc CDI for Horizontal Style Engines

50cc to 140cc CDI for Horizontal Style Engines
This CDI will fit most 50cc to 140cc horizontal engines. Check to make sure yours looks the same.
Our PriceCAN$82.99
Retail Price CAN$89.99
CodeCDI-0011
Stock 60
Weight .2
Save wishlist

This is the CDI you likely need if you have a 50cc to 140cc, 4 stroke, Chinese made ATV, dirt bike, or pit bike.

If you want to get a bit more power out of your engine try one of our performance racing CDIs.

Specs from Manufacturer;

Specifications

1. for DY110, LF110 Honda type series;
2. DC power;
3.motorcycle CDI unit,

 Product name     LF110 CDI

Applicable Motors: LF100D ,DY100 DC series engine

Characteristics

1. Battery Capacitor discharge type electron ignition

2. Ignition energy stable

3. Strong resistance to interference

4. Strong environment adaptation,high reliability

5. Stable inlet angle,low speed & high speed ignition performance

Technical Indexes

item

index

Remark

Storage temperature range

-40~80°C



Working temperature range

-30~60°C



Type

SCR switch type



Arc state

AC arc



Capacity of energy storage

capacitor

1.0μF/400V



Work voltage range

8V—16V



Work current

(Power voltage14V)

less than 0.2A

1500r/min

less than 0.6A

8000r/min

SCR bears the forward current climbing rate

dv/dt=20A/μs



SCR withstanding maximum current

above 100A 30μs



Min.rotate speed

of continuous ignition

≤150r/min

With battery,

Continues the 20S do not flameout

Rotate speed range in continuous ignition

150r/min—10000r/min

With battery

400r/min—10000r/min

Without battery,

empty load

Product ignition angle of advance characteristic

The angle of advance gets up changes a rotational speed, 2100r/min±200r/min   15°±1°

The angle of advance changes a rotational speed finally, 3500r/min±200r/min   30°±2°

Flameout function

Flameout switch separation flameout

Ignition period characteristic

 LF110 CDI of motorcycle parts

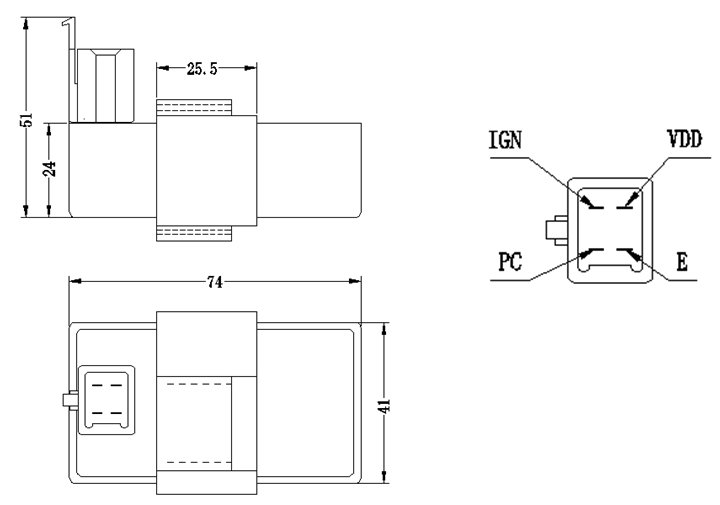

Size and interface diagram

 LF110 CDI of motorcycle parts

Electrical   interface  diagram

 LF110 CDI of motorcycle parts

Direction for use

1.If the CDI do not fire or in random,please check wiring pattern

2.The CDI do not fire in low speed,please check triggering sensor clearance

3.CDI can not be close to heat resource
